This page contains pictures and remarks about the the construction of my homebuilt aircraft.

[ READ THE DISCLAIMER! ]

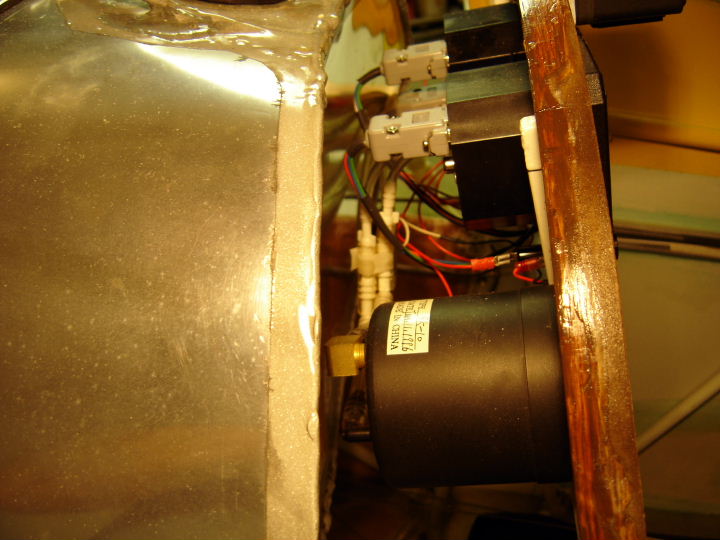

Static and pitot lines. Put black marker on one so that they wouldn't get crossed up.

Recessed box for starter.

Gaskolator on cabin side of firewall.

Used D-Sub connectors for EGT and CHT wiring.

Bottom rear cowl. Hole in bottom for gaskolator drain.

3 piece cowl.

Hole in bottom cowl for fuel tank vent tube.
